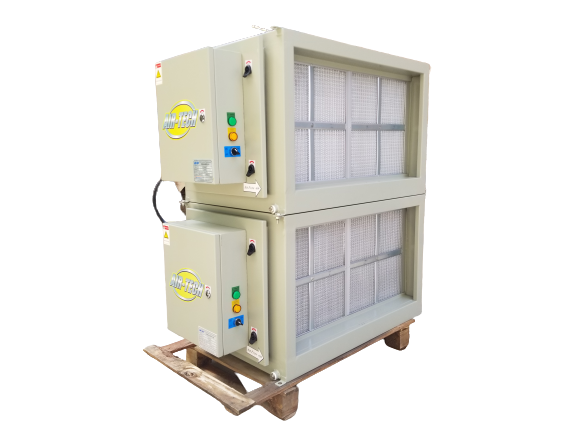

AIR-TECH ELECTROSTATIC PRECIPITATOR
- HKFSD Ventilation Division Approved
- Comply with UL 710:2017 (6th Edition) and UL 867:2016 (5th Edition)
- MERV15 ASHRAE Test Standard 52.2-2012
- EN779-2012
- 96% Oil Removal Efficiency – China Standard (HJ/T 62-2001 – Test Regulation For Fume Control Equipment)
APPLICATION:
- Commercial kitchen exhaust fume purification
- HVAC air purification
- Input Voltage 220~230V/1/50~60Hz
- Watertight Welded Galvanized Steel with Powder coat finish cabinet, drain pan and drain hole.
- Lower Pressure Drop, 81Pa at design flow rate.
- Reduce Odours and Permanent deposition of contaminants.
- Two-piece ionizer-collector section, Aluminium Ionizer with tungsten wire &Aluminium Collecting Cell.
- Aluminium Pre/After Panel Filter.
- Dual Voltage Solid State Design Power Pack – Low Voltage “Fail-safe” &“Automatic” Reset Design.
- LED Indication Lamp indicate the Power Pack Running and Voltage Supply.
- Safety Interlock Switches System, cut-off power whenever door is unusual open.
- Stainless Steel Slides, Stainless steel air distribution baffles, Open Beneath support framework.
- Each Section with Perimeter Gaskets Side Access Maintenance Door.
- High Rated Ceramic and Glass Fill Polyseal Insulator.
- Without High Voltage Wiring between Each Inside Compenonts, Easy remove ionizer-collector section components.
- Fan interlock dry contact provided.
