Electrostatic Precipitator Washing System
- HKFSD Ventilation Division Approved
- Comply with UL 710:2017 (6th Edition) and UL 867:2016 (5th Edition)
- MERV15 ASHRAE Test Standard 52.2-2012
- 91.9% 0.75μm~1.00μm – EN779-2012
- 96% Oil Removal Efficiency – P.R.C. Standard HJ/T 62-2001
- 50% Odour Removal Efficiency
APPLICATION:
- Commercial kitchen exhaust fume purification
- HVAC air purification
- 2 washing modes: “Auto” and “Manual”
- Program timer control panel with adjustable timer and timer bypass switch to control washing cycles
- LED status light indication
- Water solenoid valve assembly system
- Fixed nozzle washing system, 360° vertical fixed spray nozzle
- Removable brass adhesive nozzles
- Rotary gear detergent pump
- 40L adhesive tanks

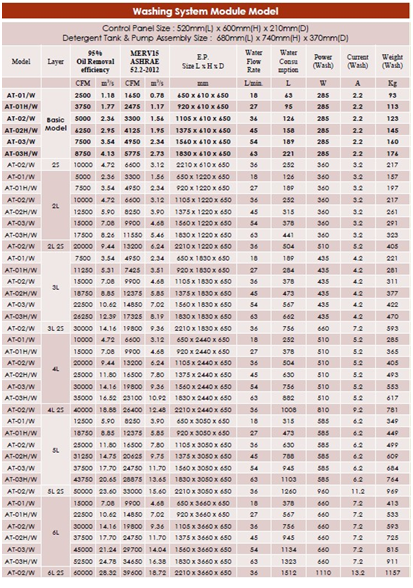

Specifications
